Egis MEGA, ANL & Class T Fuse Blocks
Reference:
3803B
Egis MEGA, ANL & Class T Fuse Blocks
High-amp main fuse blocks from Egis for inverter, alternator and battery bank protection. MEGA/AMG, ANL (to 750 A) and Class T (70-600 A) formats, with sealed flexible covers that allow 360° cable access while preventing shorts.
Key Features & Upfitter Specs
- Options On This Page: 3820B MEGA block, 3902B sealed AMG/MEGA block, 3803B open ANL (2/0, 35-300 A), 3903B sealed ANL (4/0, 35-750 A) and Class T blocks 3910B-3913B covering 70-600 A.
- Ratings: 58 VDC max for 12 to 48 V systems; high interrupt for large paralleled battery banks.
- Install: High-tolerance mounting hole provisions and stainless steel self-locking hardware.
- Warranty: 4-year Egis warranty.
Specifications
| Configuration | ANL Fuse Block for Up to 2/0 Cables, 35 - 300 A, Open, MEGA Fuse Block, M8 Stainless Self-Locking Hardware, Black Cover, Sealed AMG / MEGA Fuse Block, ANL Fuse Block for Up to 4/0 Cables, 35 - 750 A, Sealed, Class T Fuse Block, 70-100 A, Sealed, Class T Fuse Block, 110 - 200 A, Sealed, Class T Fuse Block, 225 - 400 A, Sealed, Class T Fuse Block, 450 - 600 A, Sealed |
| Manufacturer | Egis |
| Tags | |
|---|---|
| Tags |
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Part Numbers & Pricing 8 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|

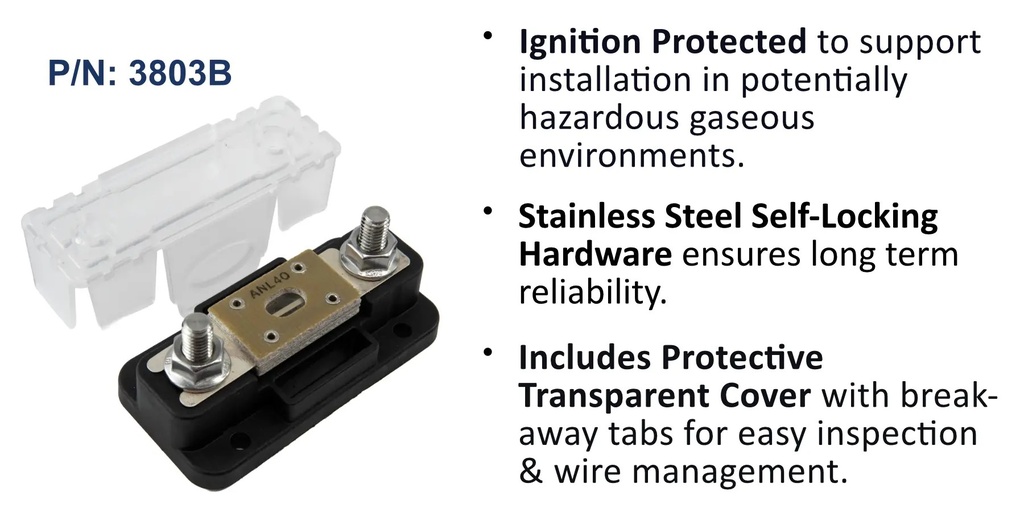

3803B
|
Egis | ANL Fuse Block for Up to 2/0 Cables, 35 - 300 A, Open | $ 14.99 | |
3820B
|
Egis | MEGA Fuse Block, M8 Stainless Self-Locking Hardware, Black Cover | $ 11.99 | |
3902B
|
Egis | Sealed AMG / MEGA Fuse Block | $ 33.99 | |
3903B
|
Egis | ANL Fuse Block for Up to 4/0 Cables, 35 - 750 A, Sealed | $ 30.99 | |
3910B
|
Egis | Class T Fuse Block, 70-100 A, Sealed | $ 25.99 | |
3911B
|
Egis | Class T Fuse Block, 110 - 200 A, Sealed | $ 34.99 | |
3912B
|
Egis | Class T Fuse Block, 225 - 400 A, Sealed | $ 34.99 | |
3913B
|
Egis | Class T Fuse Block, 450 - 600 A, Sealed | $ 38.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
