Egis XD Flex L Lithium Relays
Reference:

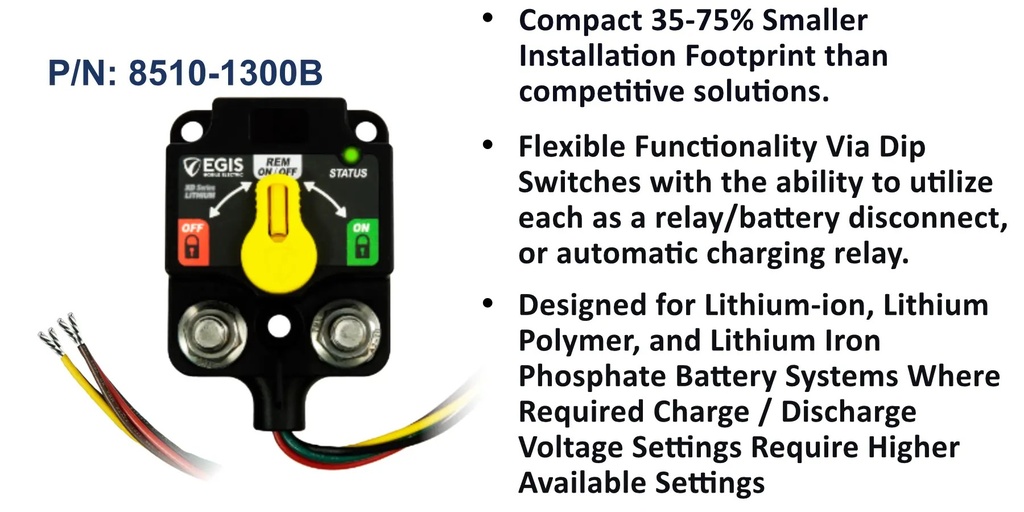

8510-1300B
Egis XD Flex L Lithium Relays
Egis XD Flex L relays bring the sealed XD platform to lithium battery systems with the higher charge/discharge voltage set points LiFePO4 banks require. Single, dual and triple modules with knob overrides, in wire-lead or Deutsch connector versions.
Key Features & Upfitter Specs
- Options On This Page: Single programmable VSR/relay (tinned wires or 6P DTM), dual ACR/Relay, Relay/ACR and ACR/Mech (wires or 6P DT), triple Relay/ACR/Relay and Relay x3 (wires, DTM or 12P DT), plus a retail dual.
- Ratings: 500 A continuous / 1600 A cranking per switch; IP67 / IP6K9K; DIP-switch programmable.
- Expandable: Link and crossover busbars support 2 and 3 battery systems.
- Warranty: 4-year Egis warranty.
Specifications
| Configuration | Single Flex L- Programmable VSR/Relay with Knob - Tinned Wires, Dual - Flex L - (ACR)-(Relay) with Knobs - Tinned Wires, Dual - Flex L (ACR - Mech Only) Knob, Mech - Flying Wires, Dual - Flex L - (Relay)-(ACR) with Knobs - Tinned Wires - Retail Pack, Dual - Flex L - (Relay)-(ACR) with Knobs - Tinned Wires, Triple - Flex L - (Relay)-(ACR)-(Relay) with Knobs - Tinned Wires, Triple - Flex L - (Relay)-(Relay)-(Relay) with Knobs - Tinned Wires, Single Flex L (ACR) with Knobs - 6P DTM Connector, Dual - Flex L (Relay/ACR) with Knobs - 6P DT Connector, Triple - Flex L Lithium (Relay/ACR/Relay) with Knobs - DTM, Triple - Flex L Lithium (Relay/ACR/Relay) with Knobs - 12P DT |
| Manufacturer | Egis |
| Tags | |
|---|---|
| Tags |
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Part Numbers & Pricing 11 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|
8510-1300B
|
Egis | Single Flex L- Programmable VSR/Relay with Knob - Tinned Wires | $ 120.99 | |
8520-1350B
|
Egis | Dual - Flex L - (ACR)-(Relay) with Knobs - Tinned Wires | $ 182.99 | |
8520-1390B
|
Egis | Dual - Flex L (ACR - Mech Only) Knob, Mech - Flying Wires | $ 127.99 | |
8520-1530
|
Egis | Dual - Flex L - (Relay)-(ACR) with Knobs - Tinned Wires - Retail Pack | $ 187.99 | |
8520-1530B
|
Egis | Dual - Flex L - (Relay)-(ACR) with Knobs - Tinned Wires | $ 182.99 | |
8530-1535B
|
Egis | Triple - Flex L - (Relay)-(ACR)-(Relay) with Knobs - Tinned Wires | $ 258.99 | |
8530-1555B
|
Egis | Triple - Flex L - (Relay)-(Relay)-(Relay) with Knobs - Tinned Wires | $ 258.99 | |
8610-1300B
|
Egis | Single Flex L (ACR) with Knobs - 6P DTM Connector | $ 125.99 | |
8620-6530B
|
Egis | Dual - Flex L (Relay/ACR) with Knobs - 6P DT Connector | $ 186.99 | |
8630-1535B
|
Egis | Triple - Flex L Lithium (Relay/ACR/Relay) with Knobs - DTM | $ 265.99 | |
8630-2535B
|
Egis | Triple - Flex L Lithium (Relay/ACR/Relay) with Knobs - 12P DT | $ 263.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
